Sensormatic4625X
Wider acrylic Sensormatic AM pedestal: 2.4 m on labels, 3.0 m on hard tags in dual mode.

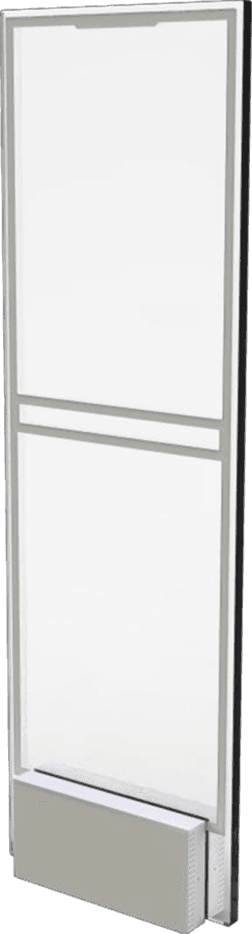

Sensormatic 4625X
What it does
The 4625X is the wider member of Sensormatic's acrylic AM pair, at 157 × 50 × 2.4 cm against the 4625L's 40 cm width, and the extra width buys reach: 2.4 m on labels and 3.0 m on hard tags in dual configuration, 1.2 m and 1.5 m as a mono post. The base is 13.9 cm thick and the primary weighs 26.6 kg net with the secondary at 25.7 kg, so specify a proper floor fixing and plan for two fitters. Electronics are embedded in the pedestal, running from a switchable 110–120 or 220–240 VAC supply at 40 W normal and 60 W maximum, with a 100 dB alarm. Tag-too-close alerting and jammer detection are included.
Specifications
| Brand | Sensormatic |
|---|---|
| Model | 4625XP / 4625XS |
| Technology | Acousto-Magnetic |
| Material | Transparent Acrylic |
| Central Frequency | 58 kHz |
| Input Voltage | 110-120 VAC/220-240 V AC (Switchable) @ 50/60 Hz |
| Power Consumption | 40 W (normal) / 60 W (max.) |
| Alarm Audio Level | 100dB max. |
| Dimensions (HxWxT) | 157 × 50 × 2.4 cm (w/o Base) |
| Thickness at Base | 13.9 cm |
| Weight (Net Primary) | 26.6 kg |
| Weight (Net Secondary) | 25.7 kg |
| Detection (Dual - Label) | 2.4 m |
| Detection (Dual - Hard Tag) | 3.0 m |
| Detection (Mono - Label) | 1.2 m |
| Detection (Mono - Hard Tag) | 1.5 m |
| Detection range (dual) | soft tag 6 feet · hard tag 8 feet |
| Detection range (mono) | soft tag 3 feet · hard tag 4 feet |
| Configuration | Supplied as primary (master) or secondary (slave) antenna |
Where it earns its keep
- Wide flagship entrances
- Stores needing 3 m of hard-tag coverage
- Retailers on Sensormatic labels wanting maximum reach
Figures above are the manufacturer's published specifications. The detection aisle, sensitivity and tag mix that work on your floor are confirmed during the site survey.
