EAS gates & pedestals

CheckpointEvolve P20

Slim RF pedestal pair at 7.9–8.5 MHz for tight shop entrances where floor space is scarce.

Request a quote RF 8.2 MHz · EAS gates

RF 8.2 MHzCheckpoint

Checkpoint Evolve P20

Overview

What it does

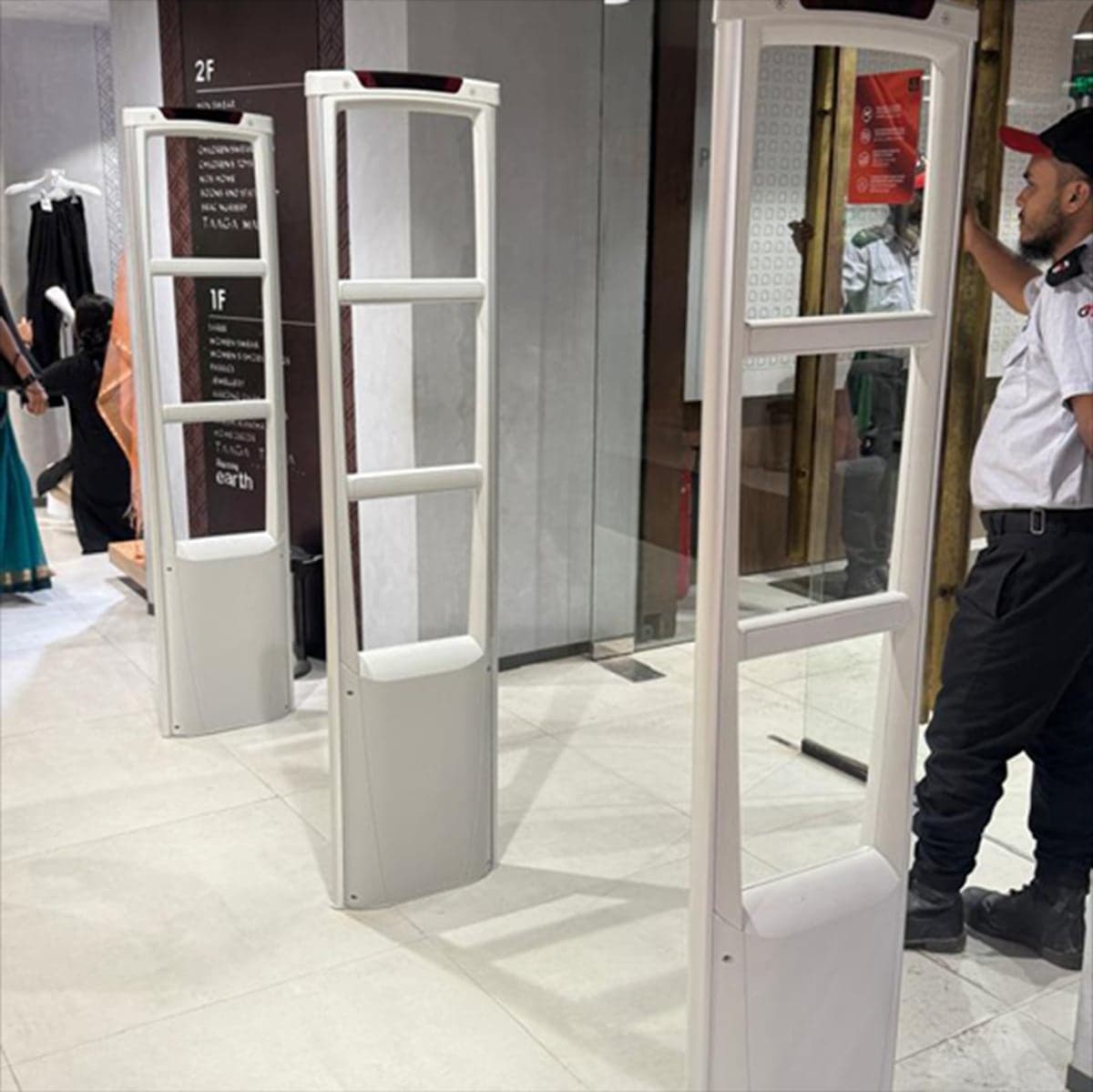

The Evolve P20 is a slim RF pedestal for entrances with no room for a wide gate — arcade units, mall in-line shops and narrow street frontages. It sweeps 7.9 to 8.5 MHz and reads RF labels at 1.6–1.8 m, drawing 25 W per antenna from 110–220 V. At 5.6 kg net per pedestal it is easy to reposition if the shopfit changes. Alarm handling can be set by tag direction, and the platform takes optional people counting, an advertising panel and metal detection.

Specifications

Manufacturer specifications for Checkpoint Evolve P20
Brand	Checkpoint
Model	Evolve P20P / Evolve P20S
Material	ABS
Frame colour	White
Frequency	7.9 to 8.5 MHz
Net weight	5.6 kg (per piece)
Gross weight	7 kg (per piece)
DR Label Detection	1.6 m - 1.8 m
Power Consumption	25 W (per antenna)
Operating Voltage	110-220 V
Detection range (dual)	soft tag 6 feet · hard tag 7 feet
Detection range (mono)	soft tag 3 feet · hard tag 3.5 feet

Where it earns its keep

Narrow mall and arcade shopfronts
Retailers already tagging with RF labels
Sites that want footfall counting on the same gate

Figures above are the manufacturer's published specifications. The detection aisle, sensitivity and tag mix that work on your floor are confirmed during the site survey.
