EAS gates & pedestals

CheckpointAMM10

Transparent acrylic AM pedestal at 58 kHz, 1.6–1.8 m on labels and up to 2.8 m on hard tags.

Request a quote AM 58 kHz · EAS gates

AM 58 kHzCheckpoint

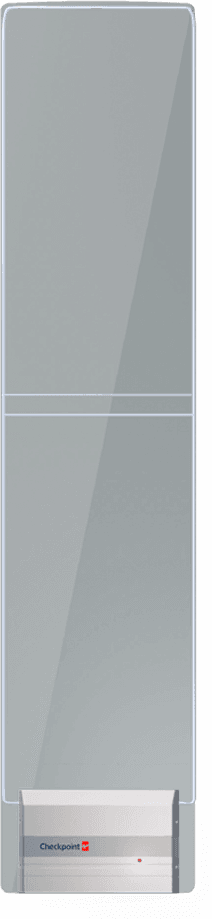

Checkpoint AMM10

Overview

What it does

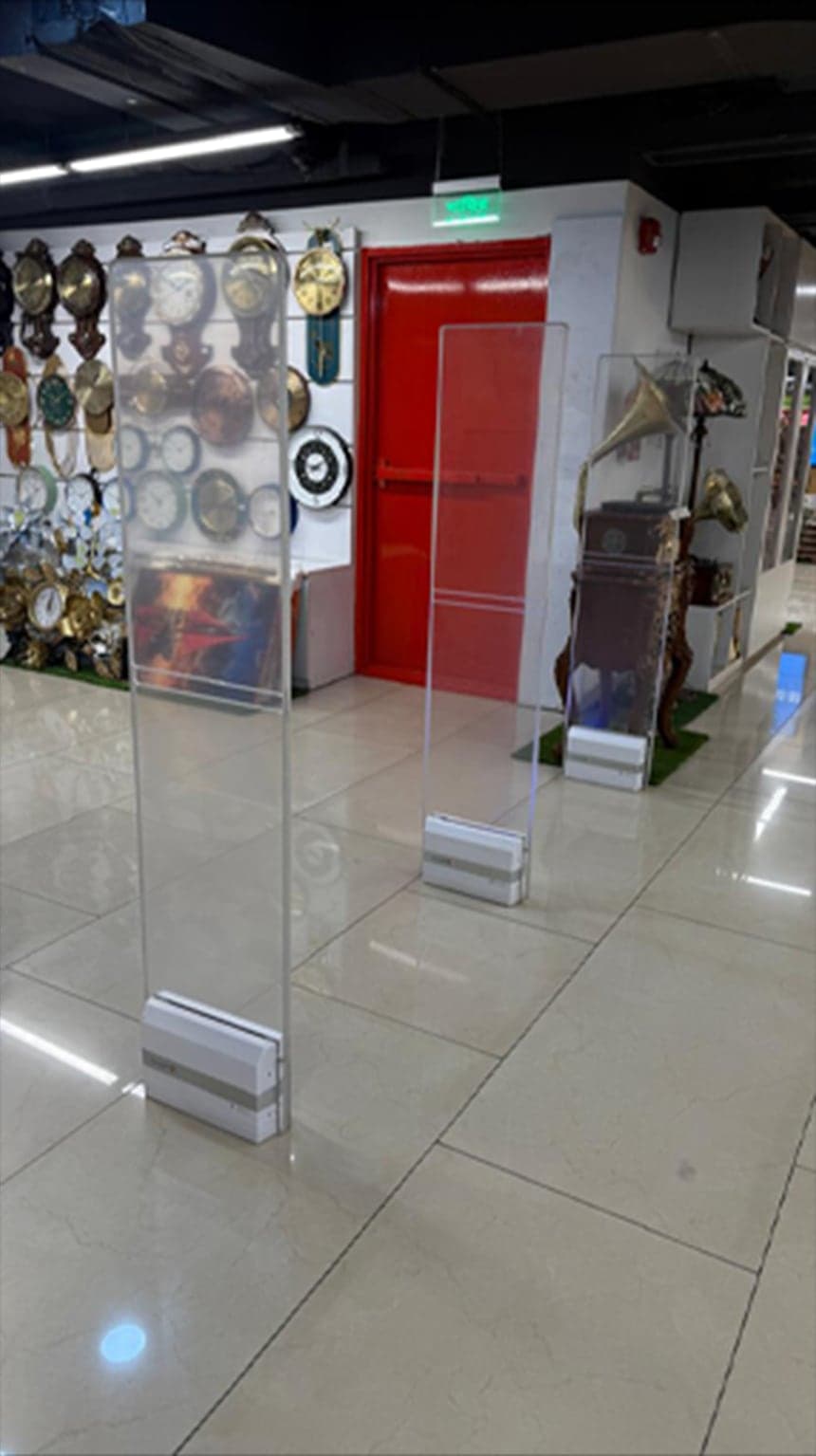

The AMM10 is the acrylic version of Checkpoint's compact AM pedestal, aimed at supermarkets and shops where a white plastic gate would look out of place. At 58 kHz it reads DR labels at 1.6–1.8 m and hard tags at 1.8–2.8 m, and each antenna draws 25 W from a 110–220 V supply. One master supports two slaves with no separate controller, so a wide entrance can be covered without extra rack hardware. Net weight is 17 kg per pedestal, so plan for two people and a proper floor fixing.

Specifications

Manufacturer specifications for Checkpoint AMM10
Brand	Checkpoint
Model	AMM10P / AMM10S
Material	Acrylic
Frame colour	Transparent
Frequency	58 kHz
Net weight	17 kg (per piece)
Gross weight	20 kg (per piece)
DR Label Detection	1.6 m - 1.8 m
Hard Tag Detection	1.8 m - 2.8 m
Power Consumption	25 W (per antenna)
Operating Voltage	110-220 V
Detection range (dual)	soft tag 4.5 feet · hard tag 5.5 feet
Detection range (mono)	soft tag 2 feet · hard tag 2.5 feet
Configuration	Supplied as primary (master) or secondary (slave) antenna

Where it earns its keep

Supermarkets with a smart front of house
Boutiques where a plain white pedestal clashes
Twin or triple-pedestal runs at one entrance

Figures above are the manufacturer's published specifications. The detection aisle, sensitivity and tag mix that work on your floor are confirmed during the site survey.
