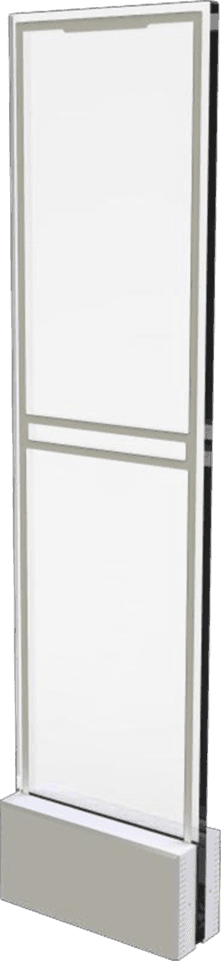

Sensormatic4625L
Transparent acrylic Sensormatic AM pedestal: 2.0 m on labels, 2.6 m on hard tags in dual mode.
Sensormatic 4625L
What it does
The 4625L is Sensormatic's clear acrylic AM pedestal, chosen where the gate has to be present without breaking the sightline into the store. In dual configuration it reads labels at 2.0 m and hard tags at 2.6 m; as a mono post those fall to 1.0 m and 1.3 m. The 157 × 40 × 2 cm panel thickens to 13.5 cm at the base and weighs 20.2 kg for the primary and 19.3 kg for the secondary, with the electronics embedded in the pedestal so no separate controller cabinet is needed. Input is switchable 110–120 or 220–240 VAC at 50/60 Hz, 40 W normal and 60 W maximum, with a 100 dB alarm and a tag-too-close warning.
Specifications
| Brand | Sensormatic |
|---|---|
| Model | 4625LP / 4625LS |
| Technology | Acousto-Magnetic |
| Material | Transparent Acrylic |
| Central Frequency | 58 kHz |
| Input Voltage | 110-120 VAC/220-240 V AC (Switchable) @ 50/60 Hz |
| Power Consumption | 40 W (normal) / 60 W (max.) |
| Alarm Audio Level | 100dB max. |
| Dimensions (HxWxT) | 157 × 40 × 2 cm (w/o Base) |
| Thickness at Base | 13.5 cm |
| Weight (Net Primary) | 20.2 kg |
| Weight (Net Secondary) | 19.3 kg |
| Detection (Dual - Label) | 2.0 m |
| Detection (Dual - Hard Tag) : 2 | 6 m |
| Detection (Mono - Label) | 1.0 m |
| Detection (Mono - Hard Tag) | 1.3 m |
| Detection range (dual) | soft tag 5 feet · hard tag 7 feet |
| Detection range (mono) | soft tag 2.5 feet · hard tag 3.5 feet |
| Configuration | Supplied as primary (master) or secondary (slave) antenna |
Where it earns its keep
- Department stores and anchor tenants
- Entrances where sightlines carry commercial value
- Sites already standardised on Sensormatic tags and labels
Figures above are the manufacturer's published specifications. The detection aisle, sensitivity and tag mix that work on your floor are confirmed during the site survey.
