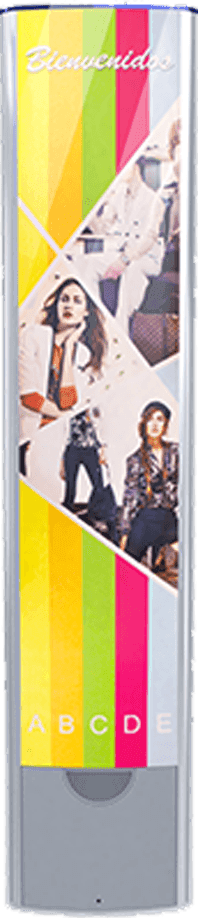

TagLockAM202 Advertising Pedestal
Grey anodised aluminium and acrylic AM pedestal, hard tags to 2.4 m at 58 kHz.
TagLock AM202 Advertising Pedestal
What it does
The AM202 combines an anodised aluminium frame with acrylic panels in grey — a tougher build than plain acrylic for entrances taking constant traffic. At 58 kHz it reads DR labels at 1.5–1.8 m and hard tags at 2.0–2.4 m, from a 1630 × 360 × 80 mm frame at 20 kg net and 26.7 kg gross. A master unit supports up to two slaves with no external controller, and every antenna can be configured as transceiver, transmitter or receiver during commissioning. Maximum draw is 200 W on 110–220 V.
Specifications
| Brand | TagLock |
|---|---|
| Model | AM102P / AM102S |
| Material | Anodized aluminum & Acrylic Frame |
| Colour | Gray |
| Frequency | 58 kHz |
| DR Label Detection | 1.5-1.8 m |
| Hard Tag Detection | 2.0-2.4 m |
| Dimensions | 1630 × 360 × 80 mm |
| Net weight | 20 kg |
| Gross weight | 26.7 kg |
| Power Consumption | 200 W max. |
| Operating Voltage | 110-220 V |
| Operating frequency | 58 kHz |
| Label detection distance | 150-180 cm |
| Hard tag detection distance | 2.0-2.4 m |
| Frame colour | Gray |
| Packaging dimensions | 1690 × 271 × 415 mm |
| Operating temperature | -5°C to 50°C |
| System configuration | Master unit supports up to two slaves, no controller required |
| Antenna configuration | Fully universal — configurable as transceiver, transmitter or receiver |
| Detection range (dual) | soft tag 6 feet · hard tag 8 feet |
| Detection range (mono) | soft tag 3 feet · hard tag 4 feet |
| Configuration | Supplied as primary (master) or secondary (slave) antenna |
Where it earns its keep
- Busy entrances that punish acrylic gates
- Three-post runs on a single master
- Stores wanting a grey metal finish at the door
Figures above are the manufacturer's published specifications. The detection aisle, sensitivity and tag mix that work on your floor are confirmed during the site survey.
EAS Anti-Theft Gates
The pedestals at your door are the single most visible loss-prevention decision you will make. They have to catch what leaves unpaid, ignore what does not, and look like they belong in your store.
