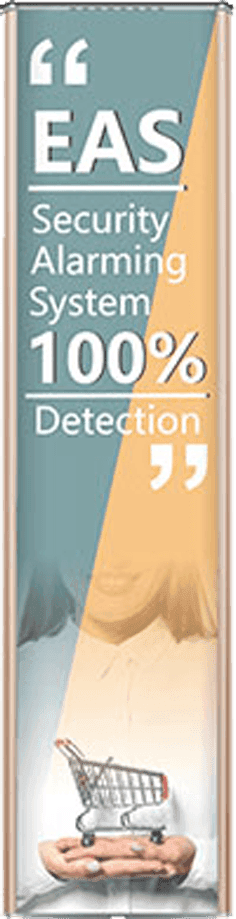

TagLockAM201 Advertising Pedestal
Champagne-gold aluminium AM pedestal with a built-in advertising panel, hard tags to 2.4 m.
TagLock AM201 Advertising Pedestal
What it does

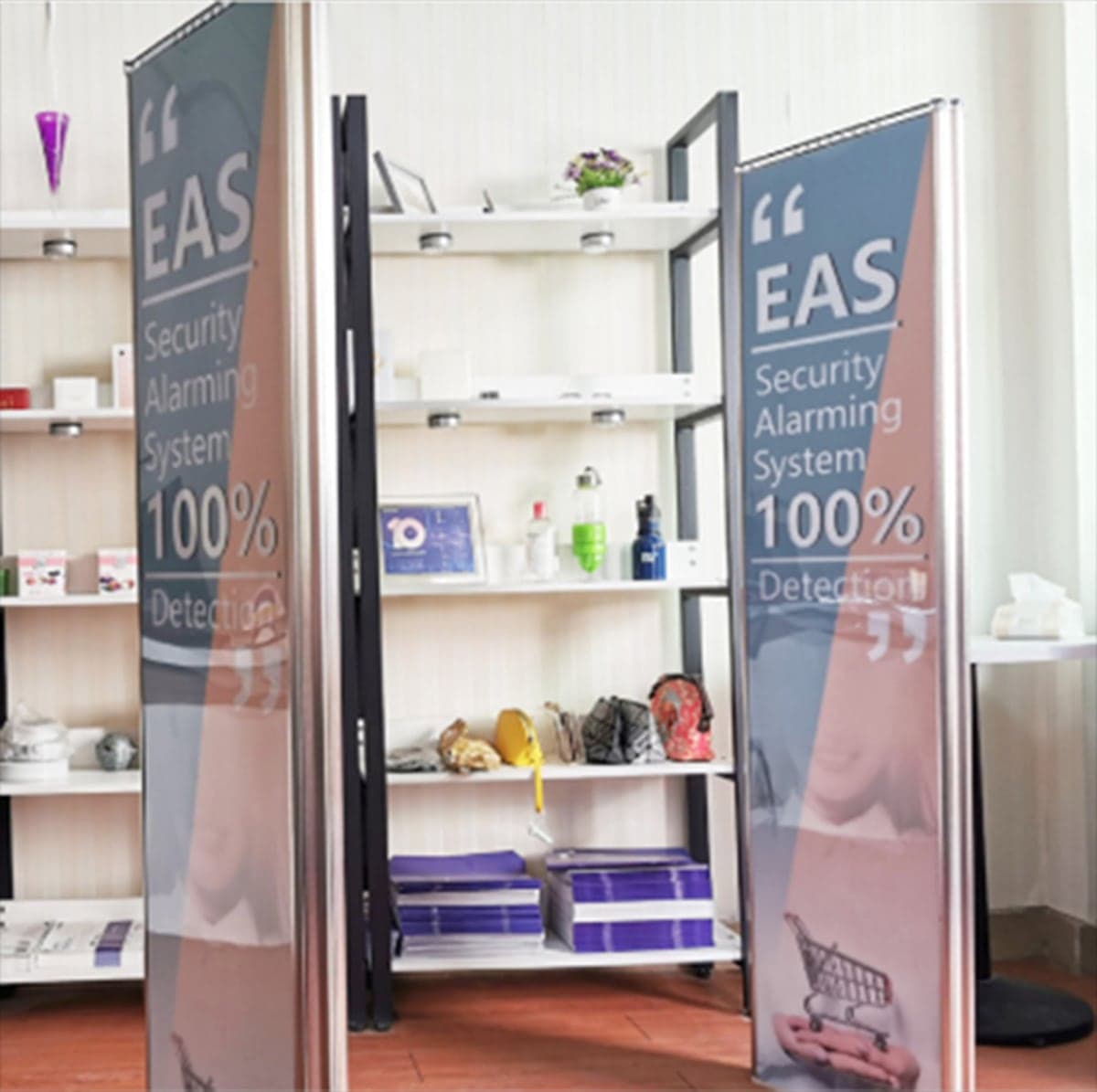

The AM201 is an aluminium AM pedestal with an advertising panel built into the body, finished in champagne gold or a colour of your choosing. It runs 58 kHz, reading DR labels at 1.5–1.7 m and hard tags at 1.7–2.4 m, from a 1600 × 400 × 70 mm frame at 14 kg net and 18.4 kg gross. One master supports up to two slaves with no controller, and each antenna can be set as transceiver, transmitter or receiver at install. Power is 100 W maximum, 25 W per antenna, on 110–220 V with a 24 V 3 A output.
Specifications
| Brand | TagLock |
|---|---|
| Model | AM201P / AM201S |
| Material | Aluminum Frame |
| Colour | Champagne Gold (or customized) |
| Frequency | 58 kHz |
| DR Label Detection | 1.5 m - 1.7 m |
| Hard Tag Detection | 1.7 m - 2.4 m |
| Dimensions | 1600 × 400 × 70 mm |
| Net weight | 14 kg |
| Gross weight | 18.4 kg |
| Power Consumption | 100 W (max), 25 W (per antenna) |
| Operating Voltage | 110-220 V |
| Output | 24 V 3A |
| Operating Frequency | 58 kHz |
| Soft Label Detection Range | 1.5-1.7 m |
| Hard Tag Detection Range | 1.7-2.4 m |
| Frame colour | Champagne Gold or customized |
| Packaging Dimensions | 1674×480×159 mm |
| Power Output | 24 V 3A |
| Work Rate Per Antenna | 25 W |
| Operating Temperature | -5°C to 50°C |
| System Configuration | One master unit with up to two slave units; no separate controller required |
| Detection range (dual) | soft tag 5.5 feet · hard tag 8 feet |
| Detection range (mono) | soft tag 2.8 feet · hard tag 4 feet |
| Configuration | Supplied as primary (master) or secondary (slave) antenna |
Where it earns its keep
- Stores that want the gate to carry promotions
- Entrances specified in a gold or bronze finish
- Retailers selling entrance advertising space to brands
Figures above are the manufacturer's published specifications. The detection aisle, sensitivity and tag mix that work on your floor are confirmed during the site survey.
