RFID tags & systems

SentraRFID25

Long-range integrated UHF RFID reader with a built-in antenna, for gates, yards and vehicle access.

Request a quote UHF RFID · RFID

UHF RFIDSentra

Sentra RFID25

Overview

What it does

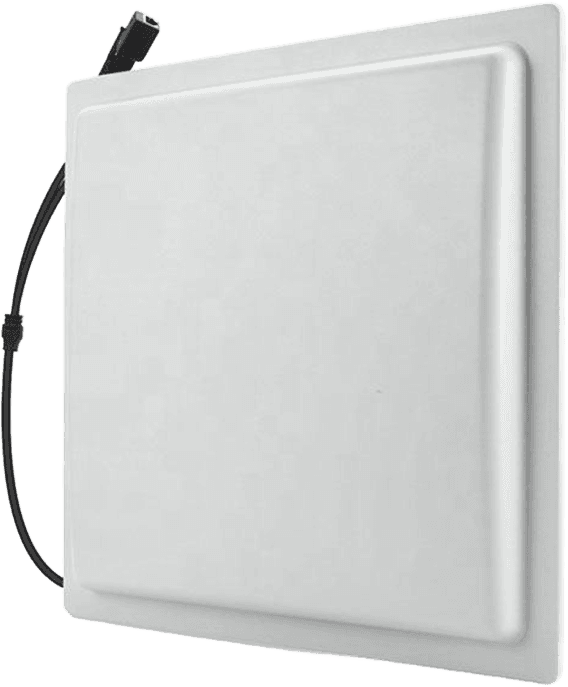

The RFID25 is a one-box UHF RFID reader with a 6 dBi circularly polarised antenna built in, so a gate or yard entrance needs a single unit and a single cable run instead of a separate reader and antenna. It works across 860–960 MHz on EPC C1 Gen 2 / ISO 18000-6C, with a specified read distance under 10 m and multi-tag reading up to 400 tags per second. The panel is 445 × 445 × 75 mm in ABS at 4.5 kg gross (packed), runs on DC 12 V, and connects over RS485, RS232 or RJ45. It is built for vehicle and gate work — warehouse yards, staff car parks, container movements — rather than for a shop entrance.

Specifications

Manufacturer specifications for Sentra RFID25
Brand	Sentra
Model	RFID25
Material	ABS
Frequency	860-960 MHz
Protocol	EPC C1 Gen 2 & ISO 18000-6C
Antenna	6dBi circularly polarized antenna
Reading Distance	< 10 m
Multi-tags Reading	< 400 tags/s
Communication	RS485, RS232, RJ45
Power Supply	DC 12 V
Dimensions	445 x 445 x 75 mm
Gross weight	4.5 kg
Detection range (dual)	soft tag 5 ft · hard tag 7 ft

Where it earns its keep

Warehouse and distribution-centre yard gates
Vehicle access control at industrial and logistics sites
Long-range read points a pedestal cannot cover
Container and pallet movement logging

Figures above are the manufacturer's published specifications. The detection aisle, sensitivity and tag mix that work on your floor are confirmed during the site survey.
