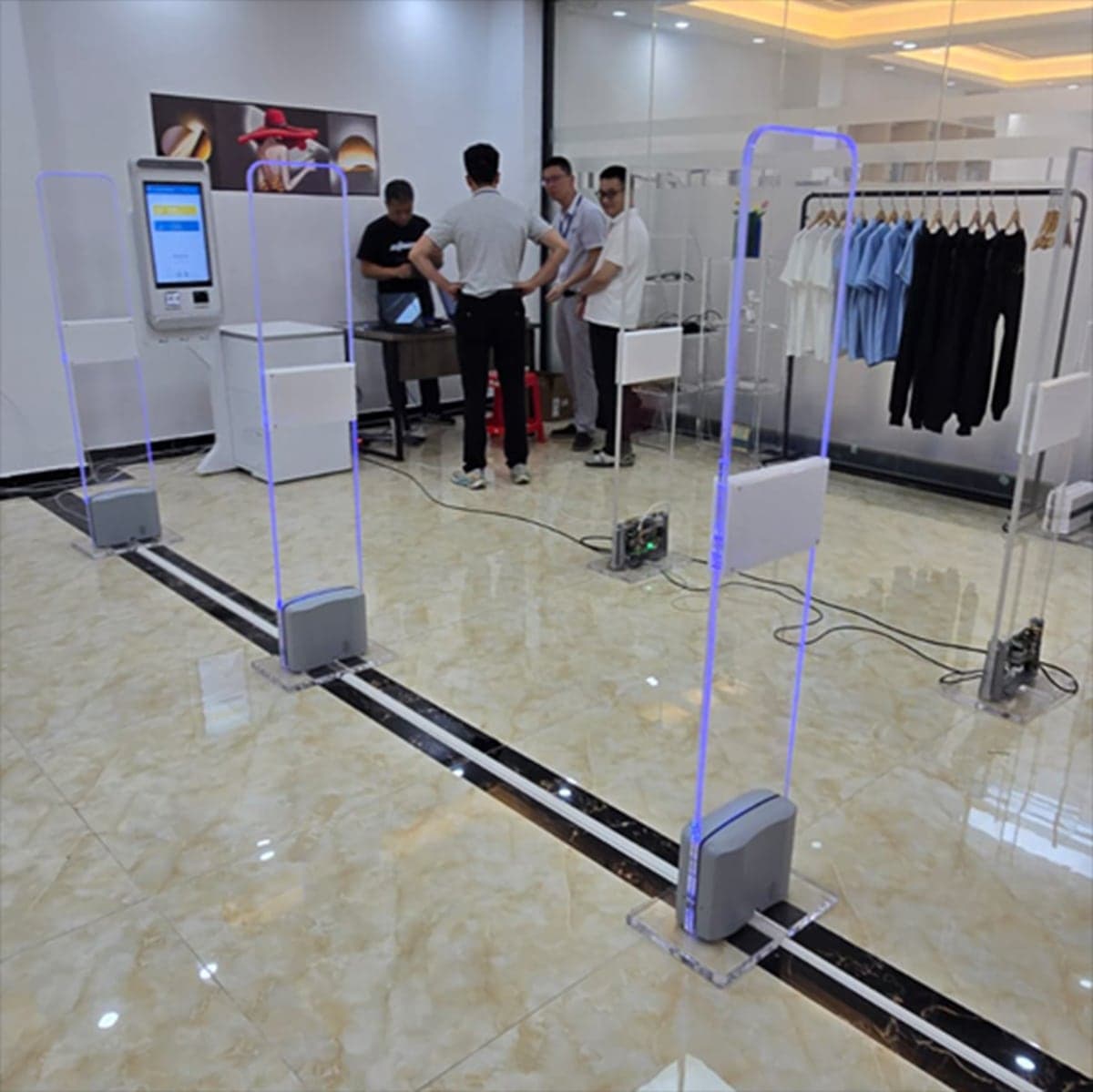

CheckpointG20 AM + RFID Pedestal

The G20 is one pedestal running 58 kHz acousto-magnetic EAS and UHF RFID together, so a store can keep its existing AM labels while it moves stock over to item-level tagging. Reading is handled by an Impinj E710 module across 860–960 MHz, with regional settings for 865–868 MHz, 902–928 MHz and 920–925 MHz. The column is transparent acrylic over ABS at 1505 × 300 × 130 mm, runs on DC 5 V ±5%, and carries four SMA antenna ports with RS232/485, Ethernet, Wi-Fi and Bluetooth back to the system. The LED column reads blue on standby, green as customers pass and red on alarm, alongside the audible alert.

• Stores migrating from AM labels to item-level RFID
• Fashion and footwear chains needing both technologies at one door
• Retailers who want exit alarms and stock data from the same gate
• Shopfits where a clear pedestal is preferred to a solid one
