RFID tags & systems

SentraRFID24

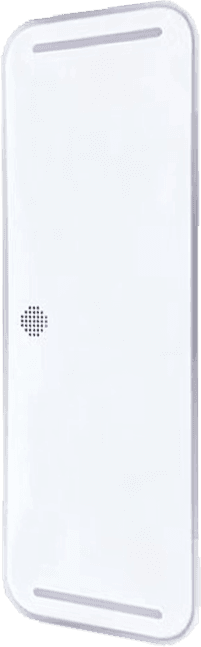

Overhead UHF RFID reader that covers a doorway from the ceiling with no floor pedestal.

Request a quote UHF RFID · RFID

UHF RFIDSentra

Sentra RFID24

Overview

What it does

The RFID24 mounts overhead rather than on the floor, so a doorway gets RFID coverage without pedestals eating into the entrance — useful in a narrow shopfront, or where a mall landlord will not allow floor-mounted units. It reads EPC C1 Gen 2 (ISO 18000-6C) tags with output power adjustable from 10 dBm to 33 dBm, so the field can be turned down where it would otherwise spill past the door and read stock on the wrong side. Connection is RJ45 (10M/100M) or RS232 at 9600–230400 bps, with Modbus, HID, HTTP, HTTPS, MQTT and TCP at the network layer. An alarm light and buzzer are built into the ABS housing.

Specifications

Manufacturer specifications for Sentra RFID24
Brand	Sentra
Model	RFID24
Material	ABS
Protocol (Tag)	EPC C1 G2 (ISO18000-6C)
Network Protocols	Modbus, HID, HTTP, HTTPS, MQTT, TCP
Output Power	10dBm - 33dBm (adjustable)
Communication Interface	RJ45 (10M/100M), RS232 (9600-230400bps),
Detection range (dual)	soft tag ৳4.00 ft · hard tag ৳6.00 ft

Where it earns its keep

Narrow shopfronts with no floor space for pedestals
Malls and landlords that prohibit floor-mounted gates
Retrofits where the entrance floor cannot be drilled
Back-of-house doors needing a stock-movement read point

Figures above are the manufacturer's published specifications. The detection aisle, sensitivity and tag mix that work on your floor are confirmed during the site survey.

Part of a system

RFID Inventory

Most Bangladeshi retailers do not lose money mainly to theft — they lose it to not knowing what is on the floor. RFID replaces the annual guess with a number you can act on this afternoon.

Read the RFID guide
