EAS gates & pedestals

SentraRF109

Silver aluminium-and-acrylic RF pedestal, 12.5 kg, hard tags to 2.4 m at 8.2 MHz.

Request a quote RF 8.2 MHz · EAS gates

RF 8.2 MHzSentra

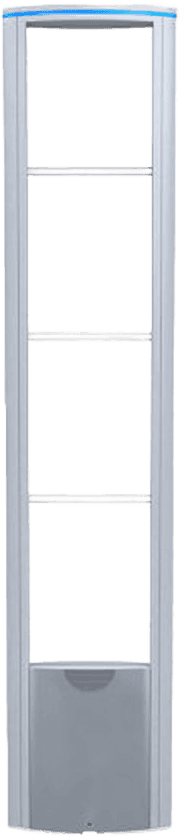

Sentra RF109

Overview

What it does

The RF109 pairs an aluminium frame with acrylic panels in a silver finish, which stands up to trolley and pushchair contact better than a bare acrylic post. It runs 8.2 MHz, reading soft labels at 1.4–1.5 m and hard tags at 2.4 m, from a 1630 × 360 × 80 mm frame at 12.5 kg net — the lightest Sentra RF gate with a published weight. Power is 10 W per antenna on 110–220 V with a 24 V 2 A output. The 1630 mm height makes it slightly taller than the acrylic models, worth checking against a low soffit or a glazed canopy.

Specifications

Manufacturer specifications for Sentra RF109
Brand	Sentra
Model	RF109P / RF109S
Material	Aluminium & Acrylic
Colour	Silver
Frequency	8.2 MHz
Detection (Soft Label)	1.4-1.5 m
Detection (Hard Label)	2.4 m
Dimensions	1630 × 360 × 80 mm
Net weight	12.5 kg
Gross weight	13.5 kg
Operating Voltage	110 - 220 V
Output	24 V 2A
Work Rate	10 W (Per Antenna)
Operating frequency	8.2 MHz
Power per antenna	10 W
Panel dimensions	1630 × 360 × 80 mm
Packing dimensions	1690 × 271 × 415 mm
Net / gross weight	25 kg/26.7 kg (2pcs)
Detection range (dual)	soft tag 4 feet · hard tag 5 feet
Detection range (mono)	soft tag 2 feet · hard tag 2.5 feet
Configuration	Supplied as primary (master) or secondary (slave) antenna

Where it earns its keep

Entrances with trolley and pram traffic
Sites where a light pedestal eases handling
Stores wanting a metal finish rather than clear acrylic

Figures above are the manufacturer's published specifications. The detection aisle, sensitivity and tag mix that work on your floor are confirmed during the site survey.
