SentraAM117

Open-frame acrylic AM pedestal with built-in people counting and 2.5 m hard-tag reach.

Request a quote AM 58 kHz · EAS gates

AM 58 kHzSentra

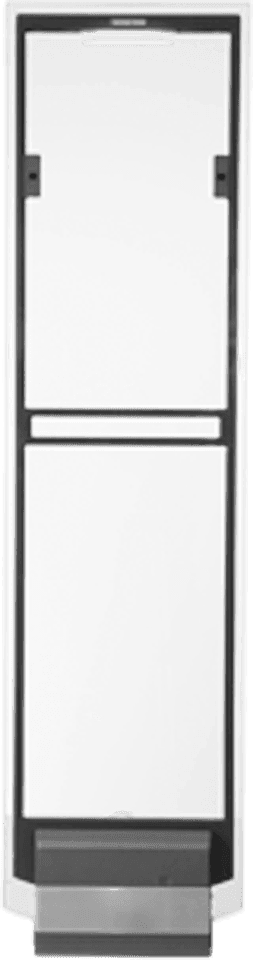

Sentra AM117

Overview

What it does

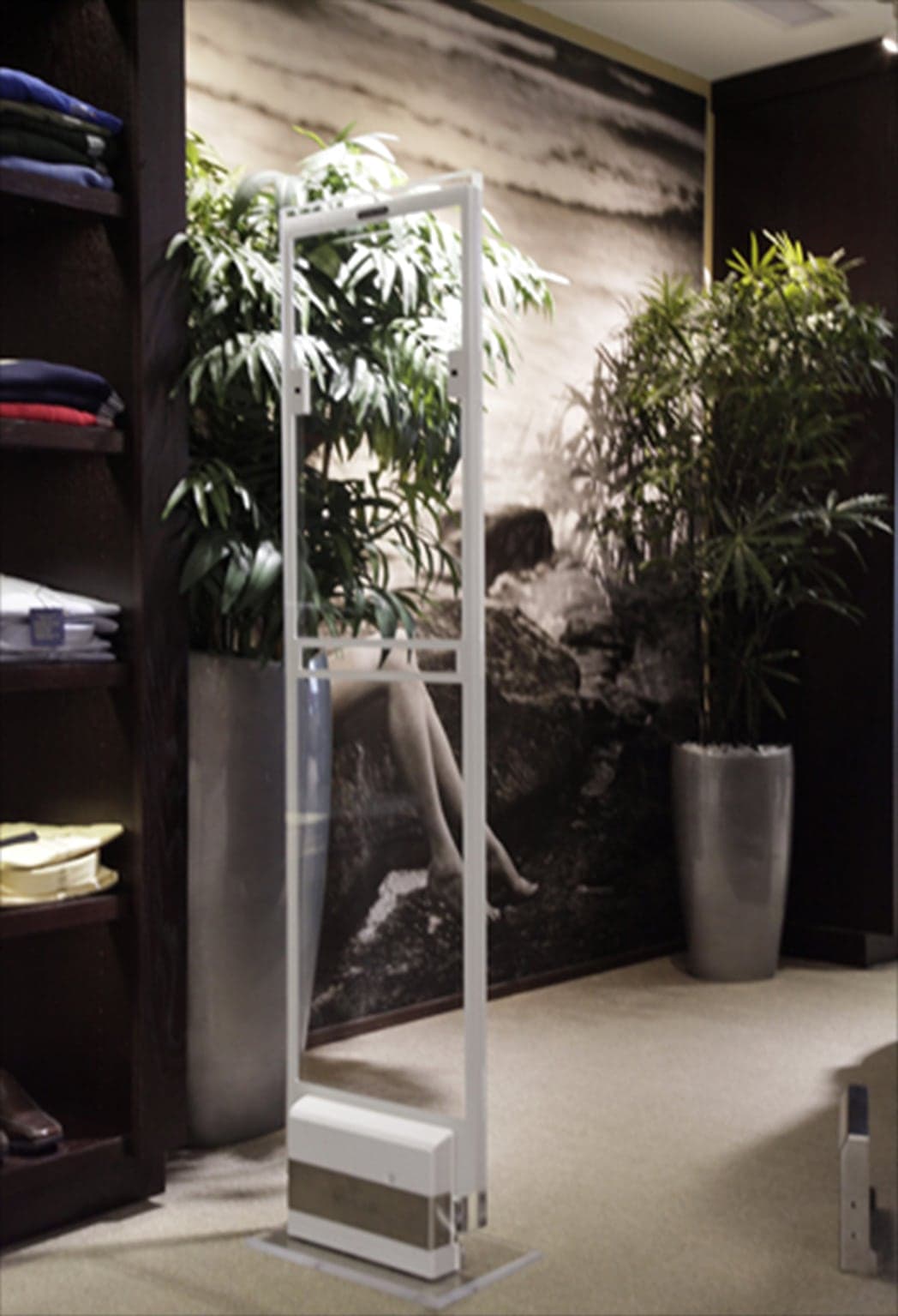

The AM117 is a thin open-frame acrylic pedestal running the 58 kHz acousto-magnetic standard, reading DR labels at 2.0 m and hard tags at 2.5 m — enough to cover a wide or double exit with a single pair. Multiple-beam people-counting sensors are embedded in the post, which also gives it a power-on-demand standby during quiet periods. The frame is 164 × 41.9 × 8.6 cm at 20 kg net, drawing 100 W total and 25 W per antenna on 110–220 V. Alarms are audio and visual and can be set to distinguish events such as jammer detection, with metal-foil detection on an optional plug-in card.

Specifications

Manufacturer specifications for Sentra AM117
Brand	Sentra
Model	AM117P / AM117S
Material	Acrylic
Frame colour	Transparent
Frequency	58 kHz
DR Label Detection	2.0 m
Hard Tag Detection	2.5 m
Dimensions	164 × 41.9 × 8.6 cm
Net weight	20 kg
Operating Voltage	110-220 V
Power Consumption	100 W
Work Rate (Per Antenna)	25 W
Detection range (dual)	soft tag 7 feet · hard tag 8 feet
Detection range (mono)	soft tag 3.5 feet · hard tag 4 feet
Configuration	Supplied as primary (master) or secondary (slave) antenna

Where it earns its keep

Stores that want footfall data out of the gate
Wide exits needing 2.5 m of hard-tag coverage
Sites with a booster-bag or foil-lining problem

Figures above are the manufacturer's published specifications. The detection aisle, sensitivity and tag mix that work on your floor are confirmed during the site survey.
