SentraAM116

Acrylic AM pedestal, labels to 2.0 m and hard tags to 3.0 m, from a 450 mm panel.

Request a quote AM 58 kHz · EAS gates

AM 58 kHzSentra

Sentra AM116

Overview

What it does

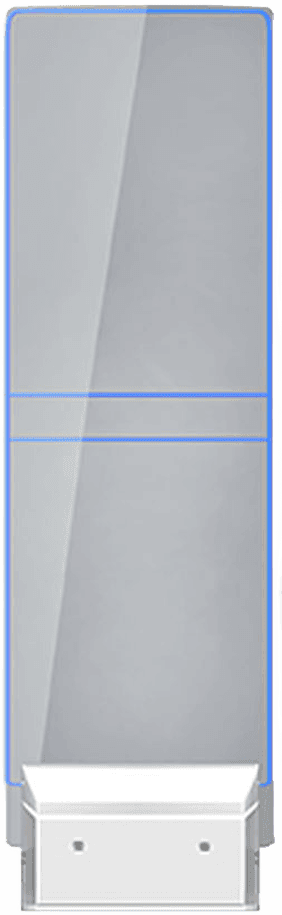

The AM116 is Sentra's full-size acrylic AM pedestal: 1560 × 450 × 130 mm, 25 kg net, reading DR labels at 1.8–2.0 m and hard tags at 2.0–3.0 m at 58 kHz. Total draw is 100 W with 25 W per antenna on a 110–220 V supply. One master unit supports up to two slaves without a separate controller, and every antenna is universal — transceiver, transmitter or receiver, set at commissioning. Jammer detection and oscilloscope diagnostics on the board keep service visits short.

Specifications

Manufacturer specifications for Sentra AM116
Brand	Sentra
Model	AM116P / AM116S
Material	Acrylic
Frame colour	Transparent
Frequency	58 kHz
DR Label Detection	1.8 m - 2.0 m
Hard Tag Detection	2.0 m - 3.0 m
Dimensions	1560 × 450 × 130 mm
Net weight	25 kg
Gross weight	30 kg
Operating Voltage	110-220 V
Power Consumption	100 W
Work Rate (Per Antenna)	25 W
Detection range (dual)	soft tag 6 feet · hard tag 8 feet
Detection range (mono)	soft tag 3 feet · hard tag 4.5 feet
Configuration	Supplied as primary (master) or secondary (slave) antenna

Where it earns its keep

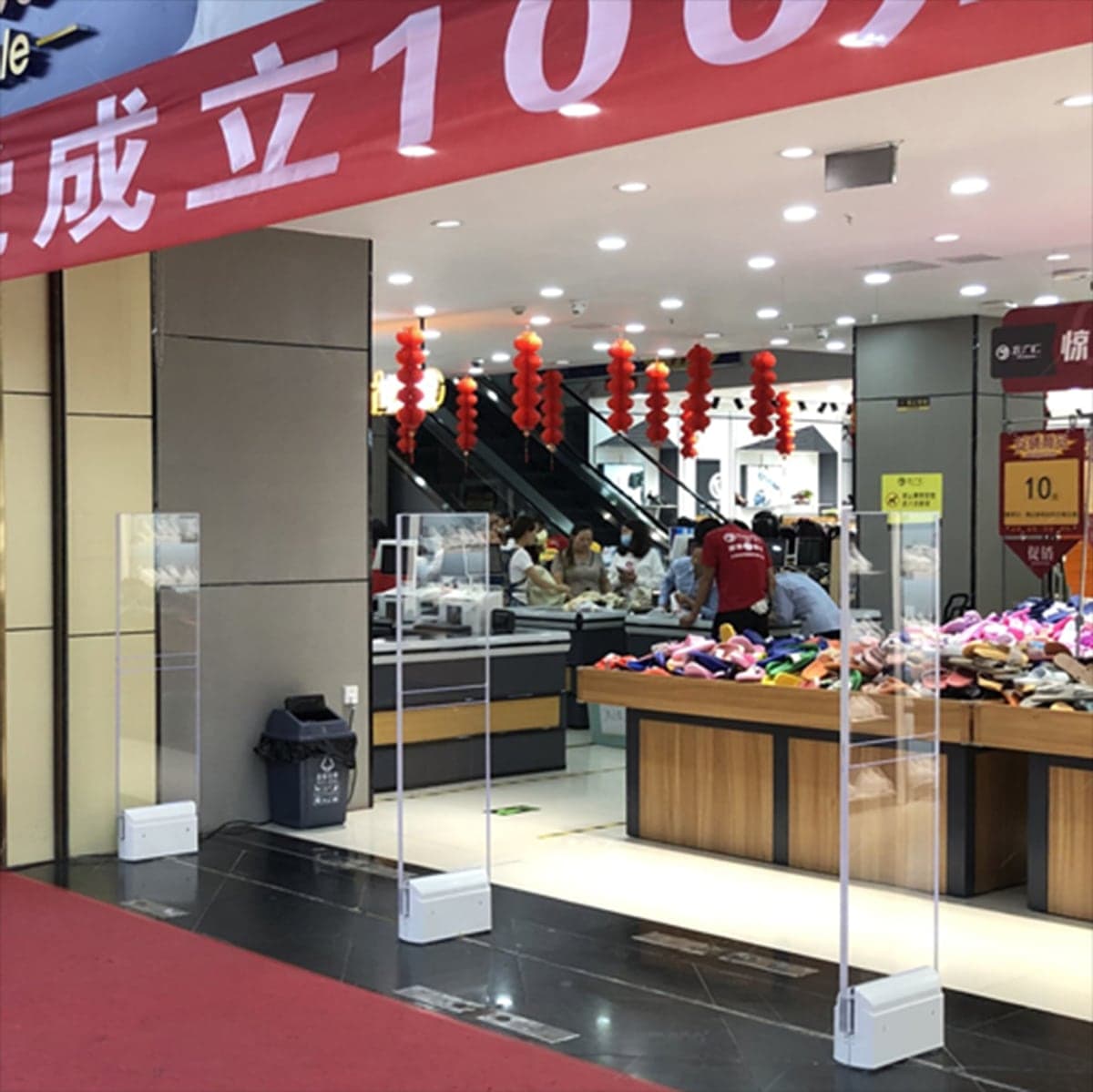

Supermarket and department store entrances
Wide exits covered by three posts on one master
Stores that want acrylic without losing reach

Figures above are the manufacturer's published specifications. The detection aisle, sensitivity and tag mix that work on your floor are confirmed during the site survey.
