SentraAM106

Very slim 300 mm acrylic AM pedestal at 14 kg, for narrow entrances.

Request a quote AM 58 kHz · EAS gates

AM 58 kHzSentra

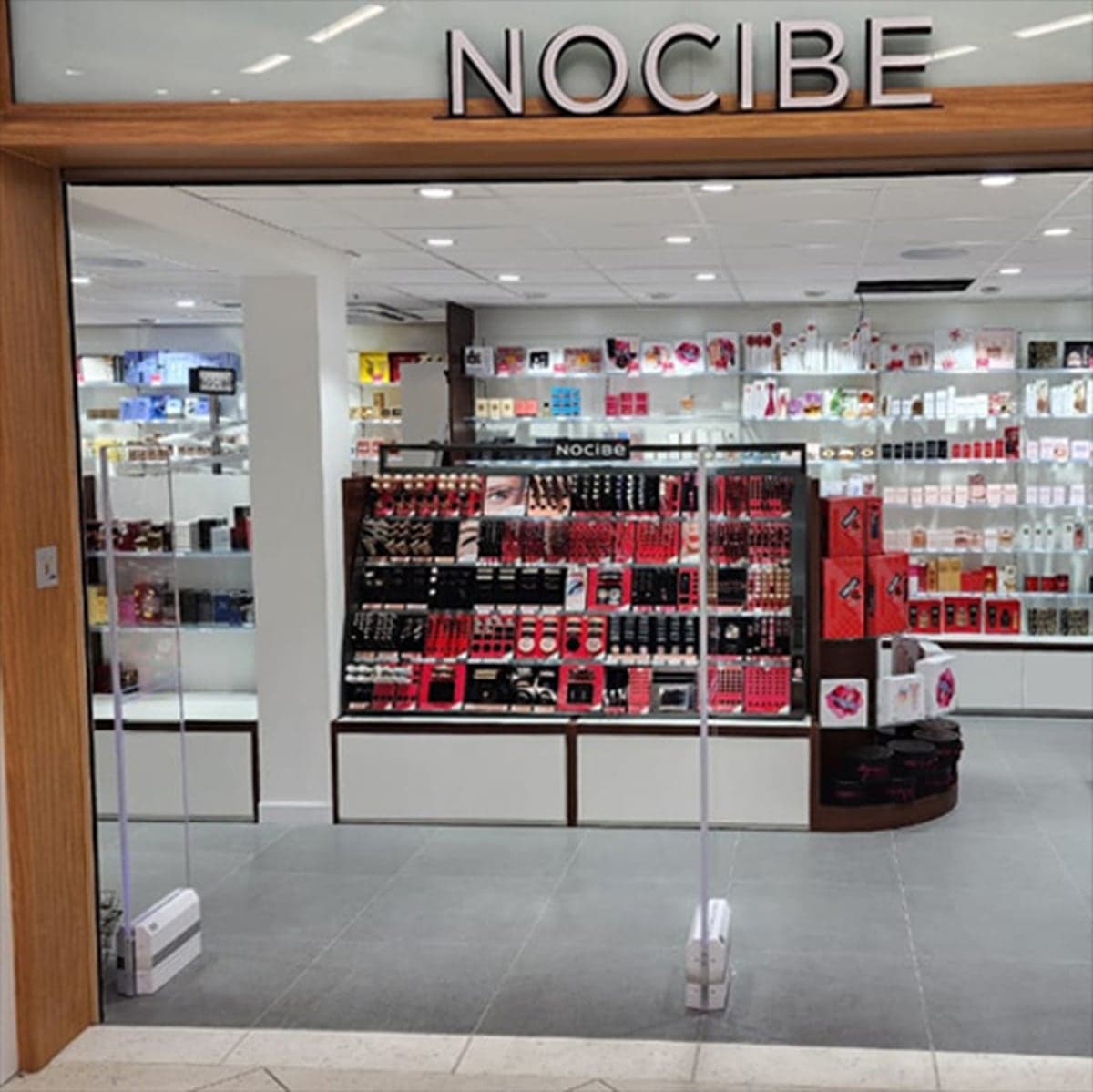

Sentra AM106

Overview

What it does

The AM106 is the narrowest Sentra AM pedestal with a published width — 1500 × 300 × 10.5 mm and 14 kg net — for entrances where a 400 or 500 mm post would foul the door swing. It reads DR labels at 1.4–1.6 m and hard tags at 1.6–2.2 m at 58 kHz, drawing 25 W per antenna up to 100 W total on 110–220 V, with a 24 V 3 A output. A master unit carries up to two slaves without a controller, and each antenna can be set as transceiver, transmitter or receiver. The trade-off for the slim body is reach, so measure the doorway before specifying.

Specifications

Manufacturer specifications for Sentra AM106
Brand	Sentra
Model	AM106P / AM106S
Colour	Transparent
Frequency	58 kHz
Antenna Material	Acrylic
Hard Tag Detection	1.6-2.2 m
DR Tag Detection	1.4 m-1.6 m
Dimensions	1500 × 300 × 10.5 mm
Net weight	14 kg
Power Consumption	25 W (per antenna), 100 W (Total Max)
Operating Voltage	110-220 V
Output Voltage	24 V 3A
Operating frequency	58 kHz
Detection range (soft label)	1.4-1.6 m
Detection range (hard tag)	1.6-2.2 m
Panel material	Acrylic
Frame colour	Transparent
Dimensions (per panel)	1520 × 300 × 10.5 mm
Packing dimensions	1640 × 488 × 142 mm
Net / gross weight	14 kg/16 kg
Power supply output	24 V 3A
Work rate per antenna	25 W
Operating temperature	-5°C to 50°C
System configuration	Master unit supports up to two slave units (universal antenna configuration)
Detection range (dual)	soft tag 5 feet · hard tag 7 feet
Detection range (mono)	soft tag 2.5 feet · hard tag 3 feet
Configuration	Supplied as primary (master) or secondary (slave) antenna

Where it earns its keep

Narrow doorways and tight lobbies
Shops where the door swing clears the pedestal by inches
Installs needing the lightest acrylic post in the range

Figures above are the manufacturer's published specifications. The detection aisle, sensitivity and tag mix that work on your floor are confirmed during the site survey.
