SentraAM102

Slim 20 mm acrylic AM pedestal: labels to 1.8 m, hard tags to 2.4 m at 25 W.

Request a quote AM 58 kHz · EAS gates

AM 58 kHzSentra

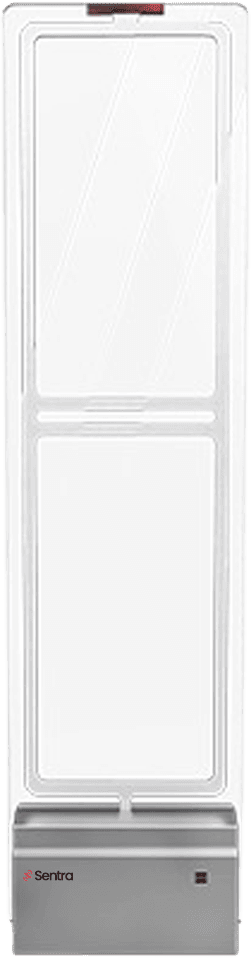

Sentra AM102

Overview

What it does

The AM102 is a slim acrylic pedestal — 1550 × 415 × 20 mm in the panel — running 58 kHz for stores that want the gate to read as a sheet of glass rather than a box. Detection is 150–180 cm on DR labels and 200–240 cm on hard tags, drawing a maximum of 25 W from 110–220 V. Net weight is 22 kg, gross 25 kg, and the working range is -5°C to 50°C. A master unit supports up to two slaves with no controller, and each antenna can be commissioned as transceiver, transmitter or receiver.

Specifications

Manufacturer specifications for Sentra AM102
Brand	Sentra
Model	AM102P / AM102S
Material	Acrylic
Frame colour	White
Frequency	58 kHz
Power Consumption	25 W Max
DR Label Detection	150-180 cm
Hard Tag Detection	200-240 cm
Dimensions	1550 × 415 × 20 mm
Net weight	22 kg
Gross weight	25 kg
Operating Voltage	110 V ~ 220 V
Detection range (dual)	soft tag 6 feet · hard tag 8 feet
Detection range (mono)	soft tag 3 feet · hard tag 4 feet
Configuration	Supplied as primary (master) or secondary (slave) antenna

Where it earns its keep

Fashion and jewellery stores
Entrances where a thick pedestal blocks the shopfront
Wide exits run from a single master unit

Figures above are the manufacturer's published specifications. The detection aisle, sensitivity and tag mix that work on your floor are confirmed during the site survey.
