EAS gates & pedestals

SentraAM101

Transparent acrylic AM pedestal at 58 kHz — labels to 1.8 m, hard tags to 2.8 m.

Request a quote AM 58 kHz · EAS gates

AM 58 kHzSentra

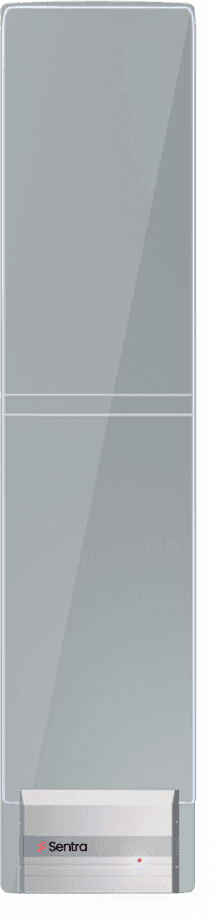

Sentra AM101

Overview

What it does

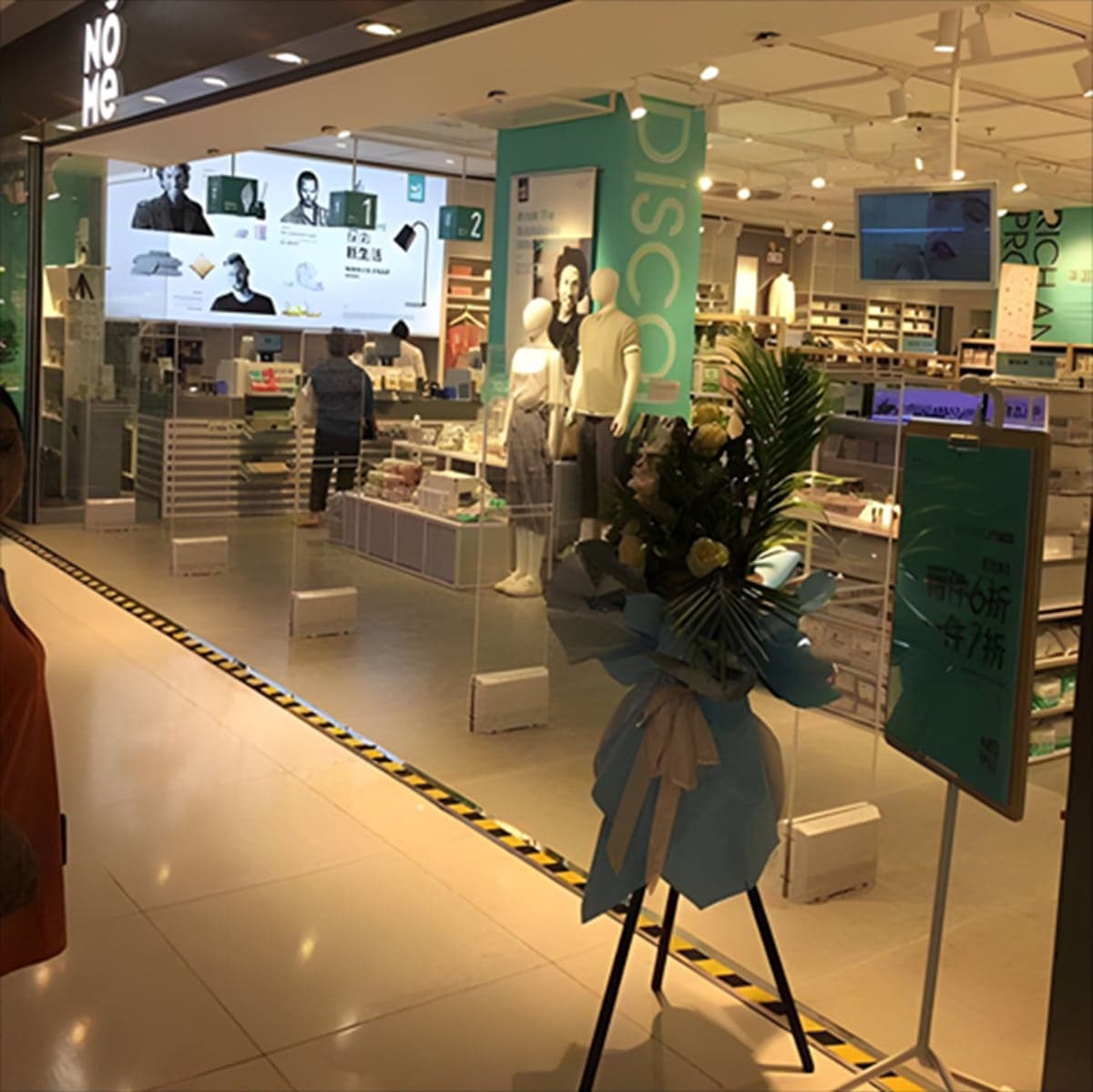

The AM101 is Sentra's transparent acrylic AM pedestal, sized for supermarkets and shops that want the entrance to stay visually open. It runs 58 kHz, reading DR labels at 1.6–1.8 m and hard tags at 1.8–2.8 m, on 110–220 V at 25 W per antenna. One master unit drives up to two slaves without a separate controller, so a wide or double entrance needs no extra cabinet. Jammer detection is on the board, which is worth having where organised groups are known to be working an area.

Specifications

Manufacturer specifications for Sentra AM101
Brand	Sentra
Model	AM101P / AM101S
Material	Acrylic
Frame colour	Transparent
Frequency	58 kHz
Net weight	17 kg (per piece)
Gross weight	20 kg (per piece)
DR Label Detection	1.6 m - 1.8 m
Hard Tag Detection	1.8 m - 2.8 m
Power Consumption	25 W (per antenna)
Operating Voltage	110-220 V
Detection range (dual)	soft tag 5 feet · hard tag 6 feet
Detection range (mono)	soft tag 2.5 feet · hard tag 3 feet
Configuration	Supplied as primary (master) or secondary (slave) antenna

Where it earns its keep

Supermarkets with a double entrance
Shops where a plastic gate would look cheap
Sites facing organised, repeat shoplifting

Figures above are the manufacturer's published specifications. The detection aisle, sensitivity and tag mix that work on your floor are confirmed during the site survey.
