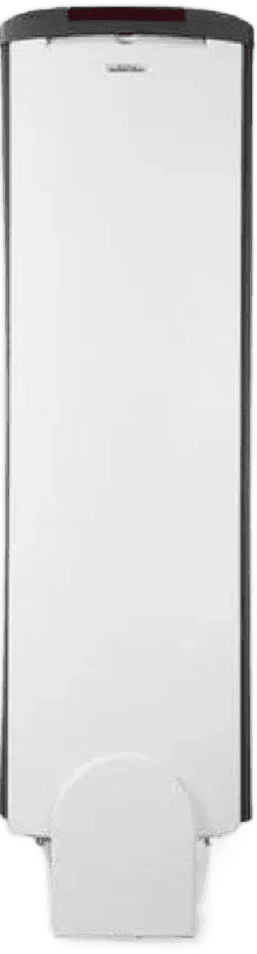

SensormaticUltra Post Self-Contained Pedestal

Self-contained Sensormatic AM pedestal, 1.8 m between posts, with no external controller.

Sensormatic Ultra Post Self-Contained Pedestal
AM 58 kHzSensormatic

Sensormatic Ultra Post Self-Contained Pedestal

Overview

What it does

The Ultra Post is Sensormatic's self-contained AM pedestal: the electronics sit inside the base cover of the primary post, so there is no separate controller to find space and power for. A pair covers up to 1.8 m between pedestals, with audible and visual alarms built into the unit. Sensormatic rate it at up to 40% less power out of the box than earlier Ultra Post systems, and the optional traffic counter adds a power-on-demand standby that they claim cuts consumption by up to 86% during quiet trading. Tags-too-close warning, jammer detection and an advertising panel kit are available on the same platform.

Specifications

Manufacturer specifications for Sensormatic Ultra Post Self-Contained Pedestal
BrandSensormatic
ModelUltra Post 6 P / Ultra Post 6 S
TechnologyAcousto-magnetic (AM), 58 kHz
HousingABS Plastic
Detection widthMaximum 6 Feet
System typeAM System
Operating frequency58 kHz
Input voltage220 V
Dimensions (H x W x D)145 cm (57in) x 41 cm (16.1in) x 11.5 cm (4.5in)
Net weightPrimary pedestal 15.1 kg (33.3lbs); Secondary pedestal 14 kg (30.9lbs)
Operating temperature0°C to 50°C (32°F to 122°F)
Relative humidity0 to 90%, non-condensing
Antenna materialABS
ColourLight Gray
ConfigurationSupplied as primary (master) or secondary (slave) antenna

Where it earns its keep

  • Sites with no room for a controller cabinet
  • Retailers who want footfall and directional counting on the gate
  • Stores watching electricity cost across long trading hours

Figures above are the manufacturer's published specifications. The detection aisle, sensitivity and tag mix that work on your floor are confirmed during the site survey.
