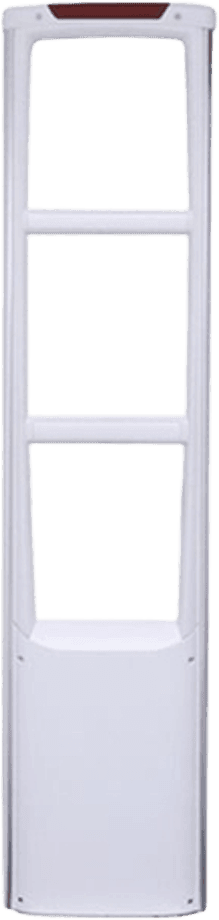

Guardia RF164

Overview

What it does

The RF164 is Guardia's ABS radio-frequency pedestal, for stores tagging with adhesive RF labels rather than AM. In dual configuration it reads a 4 × 4 cm label up to 165 cm and a 5 × 5 cm label up to 175 cm; run as a single mono post those drop to 100 cm and 110 cm. Label size therefore sets the door width it can cover, which is worth settling before the gate position is fixed. The ABS frame is rated -5°C to 50°C.

Specifications

Manufacturer specifications for Guardia RF164
Brand	Guardia
Model	RF164P / RF164S
Technology	RF (Radio Frequency)
Material	ABS
Dual - 4x4cm Label	Up to 165 cm
Dual - 5x5cm Label	Up to 175 cm
Mono - 4x4cm Label	Up to 100 cm
Mono - 5x5cm Label	Up to 110 cm
Detection range (dual)	soft tag 5.8 feet · hard tag 7 feet
Detection range (mono)	soft tag 3.6 feet · hard tag 4.5 feet
Configuration	Supplied as primary (master) or secondary (slave) antenna

Where it earns its keep

Stores committed to RF label tagging
Doorways where a single mono post will do
Shops needing a low-cost RF gate that tolerates heat

Figures above are the manufacturer's published specifications. The detection aisle, sensitivity and tag mix that work on your floor are confirmed during the site survey.
