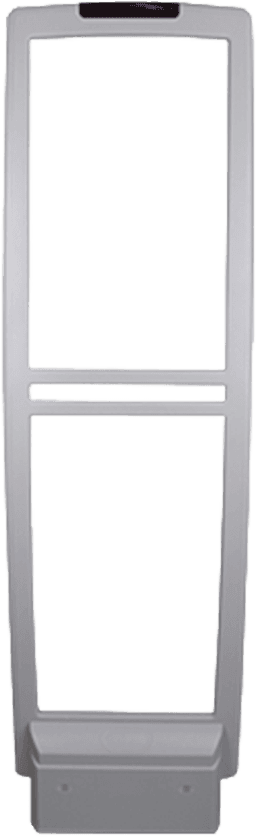

GuardiaAM153
Grey aluminium-and-acrylic AM pedestal, 58 kHz, hard tags to 2.4 m.
Guardia AM153
What it does
The AM153 pairs an anodised aluminium frame with acrylic panels, finished in grey — a harder-wearing build than plastic for entrances that take trolley knocks. It runs 58 kHz, reading DR labels at 1.5–1.8 m and hard tags at 2.0–2.4 m, on 110–220 V drawing up to 200 W. A master unit supports two slaves with no controller needed, and each antenna can be set as transceiver, transmitter or receiver during commissioning. Specify it where a wide exit has to be covered by three posts rather than two.
Specifications
| Brand | Guardia |
|---|---|
| Model | AM153P / AM153S |
| Colour | Gray |
| Frequency | 58 kHz |
| Antenna Material | Anodized aluminum & Acrylic |
| DR Label Detection | 1.5 m - 1.8 m |
| Hard Tag Detection | 2.0 m - 2.4 m |
| Power Consumption | 200 W Max |
| Operating Voltage | 110 V ~ 220 V |
| Operating Frequency | 58 kHz |
| Detection Range (soft label) | 150-180 cm |
| Detection Range (hard tag) | 2.0-2.4 m |
| Material | Anodized aluminum & Acrylic |
| Frame Colour | Gray |
| Dimensions | 1630 × 470 × 25 mm |
| Packaging Dimensions | 1700 × 530 × 280 mm |
| Net weight | 26 kg |
| Gross weight | 29 kg |
| Operating Temperature | -5°C to 50°C |
| Antenna Configuration | Fully universal — configurable as transceiver, transmitter or receiver |
| System Architecture | Master unit supports up to two slave units, no separate controller required |
| Detection range (dual) | soft tag 6 feet · hard tag 8 feet |
| Detection range (mono) | soft tag 3 feet · hard tag 4 feet |
| Configuration | Supplied as primary (master) or secondary (slave) antenna |
Where it earns its keep
- Trolley traffic and high-knock entrances
- Wide exits needing a three-pedestal run
- Stores that prefer a metal frame to plastic
Figures above are the manufacturer's published specifications. The detection aisle, sensitivity and tag mix that work on your floor are confirmed during the site survey.
