EAS gates & pedestals

GuardiaAM152

Lightweight ABS AM pedestal at 58 kHz, 5.6 kg a side, for standard shop doorways.

Request a quote AM 58 kHz · EAS gates

AM 58 kHzGuardia

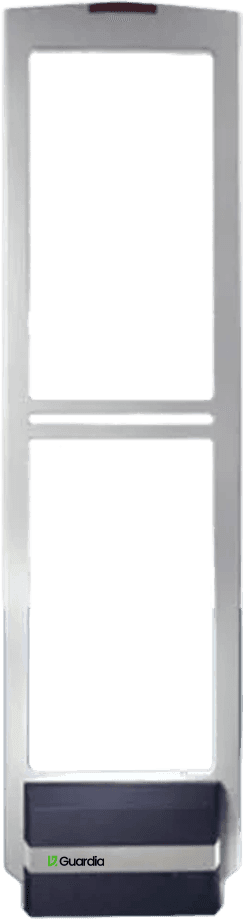

Guardia AM152

Overview

What it does

The AM152 is Guardia's workhorse ABS pedestal: 5.6 kg net per piece, 58 kHz, and DR label detection at 1.6–1.8 m. Power is 25 W per antenna on a 110–220 V supply, and the working range is -5°C to 50°C. One master unit runs up to two slaves without an external controller, and every antenna can be configured as transceiver, transmitter or receiver at install, which keeps a single stock item usable across different door widths. Jammer detection and oscilloscope diagnostics sit on the board for service visits.

Specifications

Manufacturer specifications for Guardia AM152
Brand	Guardia
Model	AM152P / AM152S
Material	ABS
Frame colour	White
Frequency	58 kHz
Net weight	5.6 kg (per piece)
Gross weight	7 kg (per piece)
DR Label Detection	1.6 m - 1.8 m
Power Consumption	25 W (per antenna)
Operating Voltage	110-220 V
Detection range (dual)	soft tag 5 feet · hard tag 6 feet
Detection range (mono)	soft tag 2.5 feet · hard tag 3 feet
Configuration	Supplied as primary (master) or secondary (slave) antenna

Where it earns its keep

Pharmacies, phone shops and small supermarkets
Multi-branch rollouts needing one stock item
Budget-led first EAS installation

Figures above are the manufacturer's published specifications. The detection aisle, sensitivity and tag mix that work on your floor are confirmed during the site survey.
