RW20 Alarm Control Panel

Wireless alarm hub that arms a shop after hours and pushes intrusion, smoke and gas alerts to a phone.

Request a quote Wireless · Alarms & detectors

WirelessHeyi

Overview

What it does

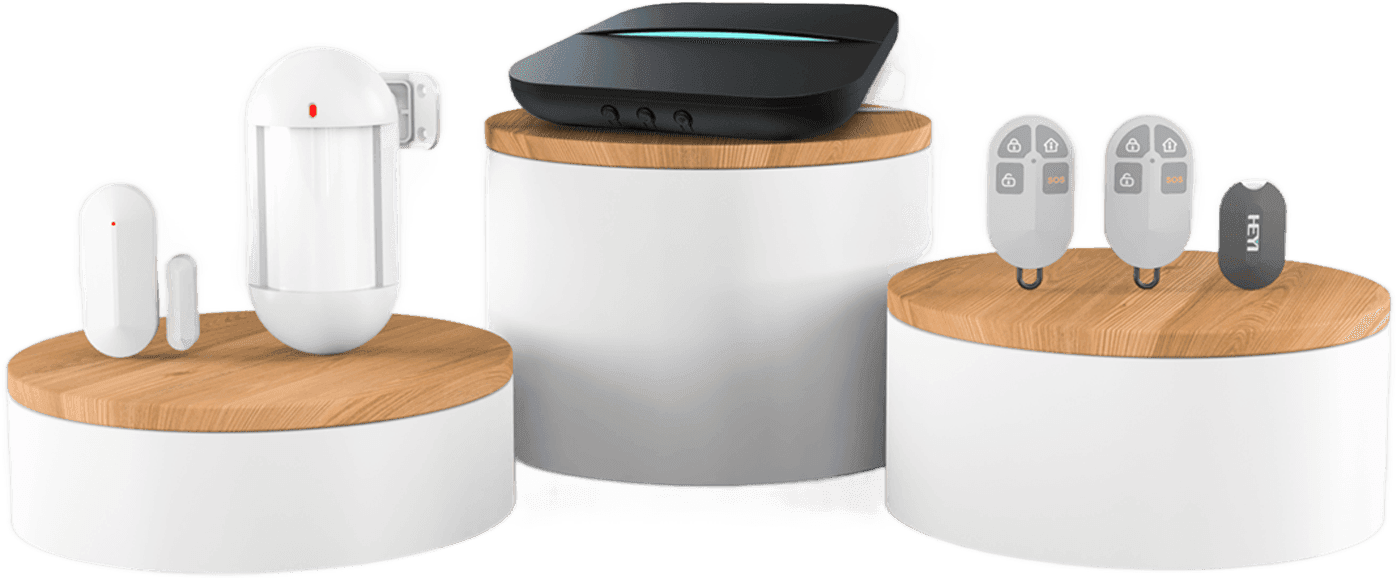

The RW20 is the controller for a small wireless alarm system: detectors and remotes pair to it over 433 MHz, and it reports out over Wi-Fi (802.11 b/g/n, 2.4 GHz) and GSM on 850/900/1800/1900 MHz. It runs on AC 100-240 V with a 3.7 V 800 mAh backup cell behind it, so a mains cut does not leave the premises unarmed. The built-in siren gives 80 dB at 1 m, which is audible inside a closed unit but not much more; budget for a separate indoor or outdoor sounder on anything larger than a single shop. The panel body is 141 × 140 × 25 mm and is rated for 10-50 degrees C at 40-70% humidity, so keep it off an uninsulated roof slab or a sealed ceiling void.

Specifications

Manufacturer specifications for RW20 Alarm Control Panel
Brand	Heyi
Model	R CP
Power supply	AC 100-240 V
Backup battery	3.7 V / 800 mAh
Built-in siren	80 dB (within 1 m)
Wireless frequency	433 MHz
GSM bands	850 / 900 / 1800 / 1900 MHz
Wi-Fi	802.11 b/g/n, 2.4 GHz
Dimensions	141 x 140 x 25 mm
Operating conditions	10 to 50 degrees C, 40-70% RH
Open-air pairing range	PIR detector >=400 m; siren >=300 m; door sensor >=200 m; remote >=100 m

Where it earns its keep

Single-unit shops armed after closing
Owners who want phone alerts rather than a monitoring contract
Sites with unreliable mains that need battery backup
Small stockrooms and warehouses

Figures above are the manufacturer's published specifications. The detection aisle, sensitivity and tag mix that work on your floor are confirmed during the site survey.
